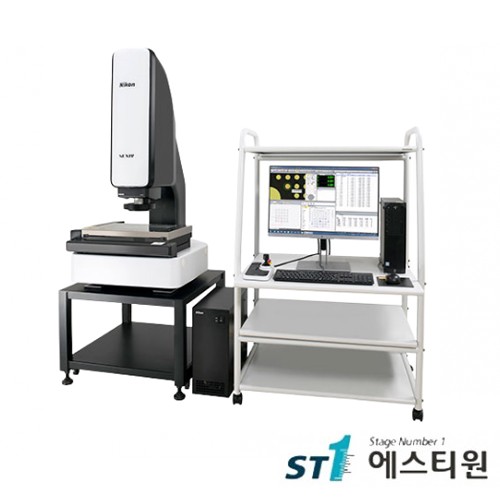

비접촉 3차원측정기 [표준모델] VMZ-S3020 VMZ-R3020은 단종되었으며, VMZ-S3020 모델로 새롭게 출시하였습니다.
|
Stroke (X x Y x Z) |
300 x 200 x 200 mm (11.8 x 7.8 x 7.8 in.) 250 x 200 x 200 mm (9.8 x 7.8 x 7.8 in.) (with type TZ at low magnification) |
Minimum readout |
0.01 µm |
Maximum workpiece weight |
20 kg (Accuracy guarantedd : 5kg) |
Measuring uncertainty |
EUX,MPE EUY,MPE: 1.2+4L/1000 μm EUXY, MPE: 2+4L/1000 μm |
Z measurement uncertainty |
EUZ,MPE: 1.2+5L/1000 μm (with Laser AF) |
Probing Error |
1),2) : MPE PF2D 0.8 μm Probing error of the imaging probe 1),2) : MPE PFV2D 0.3 μm |
Camera |
Black & white 1/3'' CMOS Camera |
Working distance |
Type 1/2/3: 50 mm (with 37° illumination), 36 mm (with 55° illumination), 10 mm (with 78° illumination) Type 4: 30 mm Type TZ: 11 mm with the main objective lens and 32 mm with the left objective lens Type A: 73.5mm (63 mm with laser AF) |
Auto focus |
Type 1, 2, 3, 4 and TZ come with TTL laser AF and vision AF. Type A comes with vision AF as standard and with laser AF as an option. |
Power source |
AC 100-240V 50/60Hz |
Power consumption |
4A-2A |
Dimensions & weight (W x D x H) |
Main unit & table: 700 x 730 x 1793 mm / 265 kg Controller: 190 x 450 x 450 / 12 kg |
Footprint |
2700 x 2400 mm |
